Ford Custom Sport Fit Out

The Brief

A complete fit-out for a Ford Transit Custom Sport SWB, designed for a heating and plumbing engineer needing maximum storage and smart organisation.

The customer requested full-length racking along both sides of the van, a half false floor with integrated pipe storage, and a secure Armorgard vault for storing expensive tools and equipment. The design also had to allow space for ladders and include dedicated compartments for toolboxes, Euro boxes, and bulkier plumbing supplies – all within the tighter dimensions of a short wheelbase van.

Customer Requirements

Maximise both side walls with efficient, easy-access storage
Integrated pipe storage and partial false floor
Space to carry ladders and longer items when needed
Secure storage for high-value tools
Storage solutions for toolboxes, larger items such as a hoover, racking for smaller items, and flexible general shelving

What We Installed

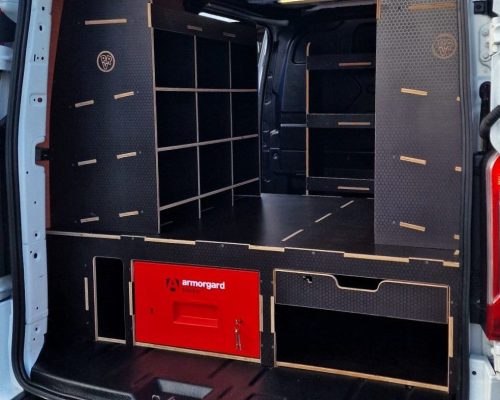

Half false floor system with a built-in pipe channel and a heavy-duty half-width pull-out drawer
Professionally fitted and anchored Armorgard vault for secure tool storage

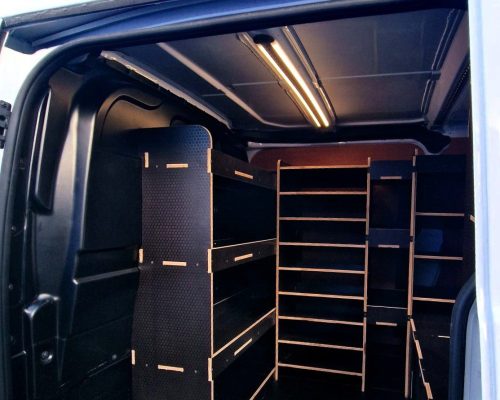

Angled racking to neatly hold 8 stackable toolboxes
Euro box container racking in 3 vertical columns (18 boxes total) for small components and fittings
Boxed shelving with three large compartments for bulkier equipment
Full interior ply lining and birch hex non-slip flooring for durability and trade use

Final Outcome

Working within the constraints of a short wheelbase van, this fit-out achieved a high level of storage without compromising accessibility or versatility. The clever half-floor design allowed for pipe storage and drawer access, while still leaving room for longer items like ladders to be carried when needed. The mix of angled toolbox storage, Euro box racking, and open shelving gave the customer dedicated space for everything from small parts to bulky equipment like a hoover. With the Armorgard vault installed securely, valuable tools are protected, and the overall layout strikes the perfect balance between organisation, flexibility, and practicality – all packed into a compact SWB footprint.
